Adjustable Hinge Wings M20

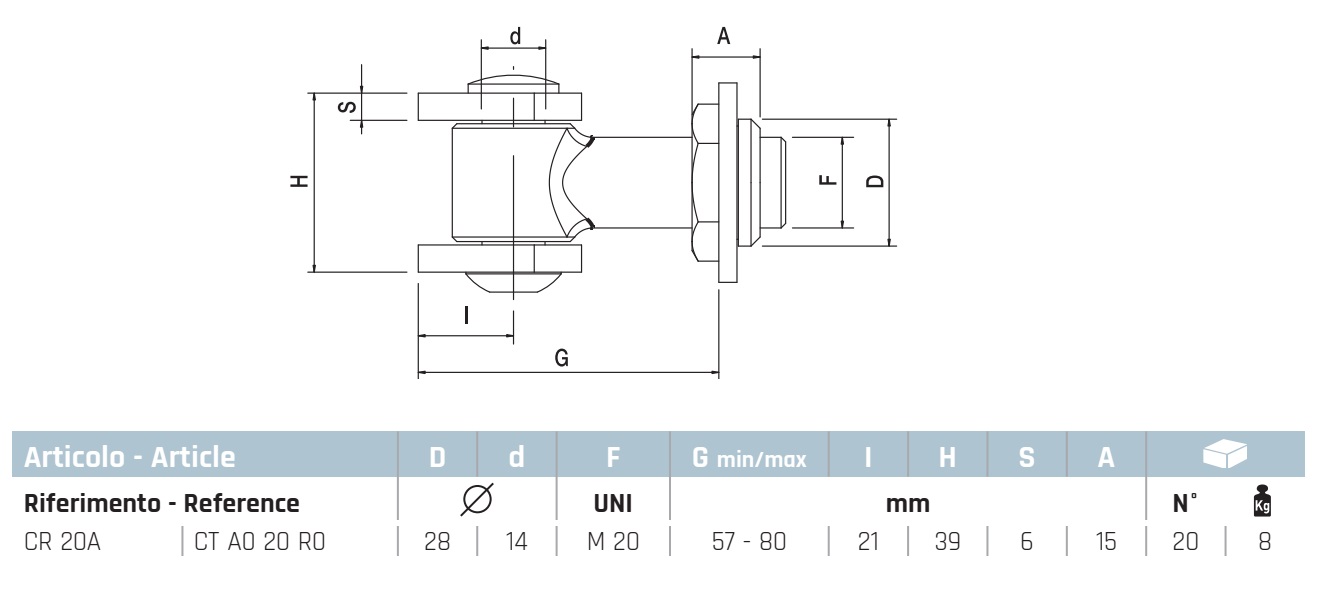

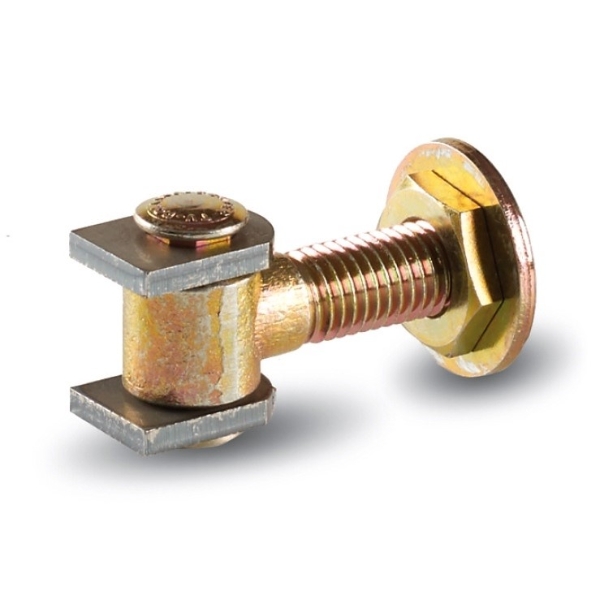

Description The CR 20A features a robust M20 threaded adjustment system, allowing effortless vertical alignment to achieve perfect gate positioning on site. Its solid steel construction, and 60-kg load-bearing capacity make it ideal for residential installations. Expertly manufactured in Italy, the CR 20A Adjustable Weld-On Hinge is designed for installers who demand accuracy, durability, and effortless adjustment. This hinge features a solid steel body, precision-machined pivot sections, and an M20 adjustable threaded system, allowing you to fine-tune the gate height and alignment directly on site. Built with a robust 28 mm diameter hinge pin (D) and a 14 mm nut diameter (d), the CR 20A is designed to endure heavy daily use while maintaining consistent alignment. A key feature of this hinge is its M20 UNI-standard threaded adjustment system (F), which allows easy and precise on-site alignment. Installers can fine-tune the gate height and position during installation or later if the gate settles over time. The hinge offers a generous 57–80 mm adjustable length range (G min/max), providing flexibility for different frame designs. The internal wing spacing is 21 mm (I), while the hinge’s overall height is 39 mm (H). Each mounting wing is made with a sturdy 6 mm plate thickness (S) and a 15 mm width (A), ensuring excellent weld points and long-term structural rigidity. Constructed from Italian-grade steel and designed for reliability in all weather conditions, the CR 20A delivers long-lasting performance even in demanding environments. Key Features Italian-made weld-on hinge with stabilising wings M20 threaded adjustment for perfect gate alignment Strong 28 mm hinge pin for high load capacity Smooth, reliable operation over long-term use Increased weld surface for maximum support Ideal for light weight swing gates
