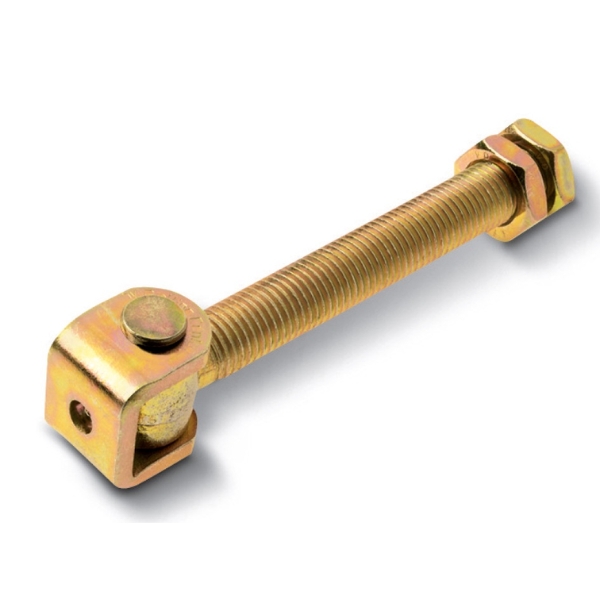

Adustable Hinge Long Bar M24

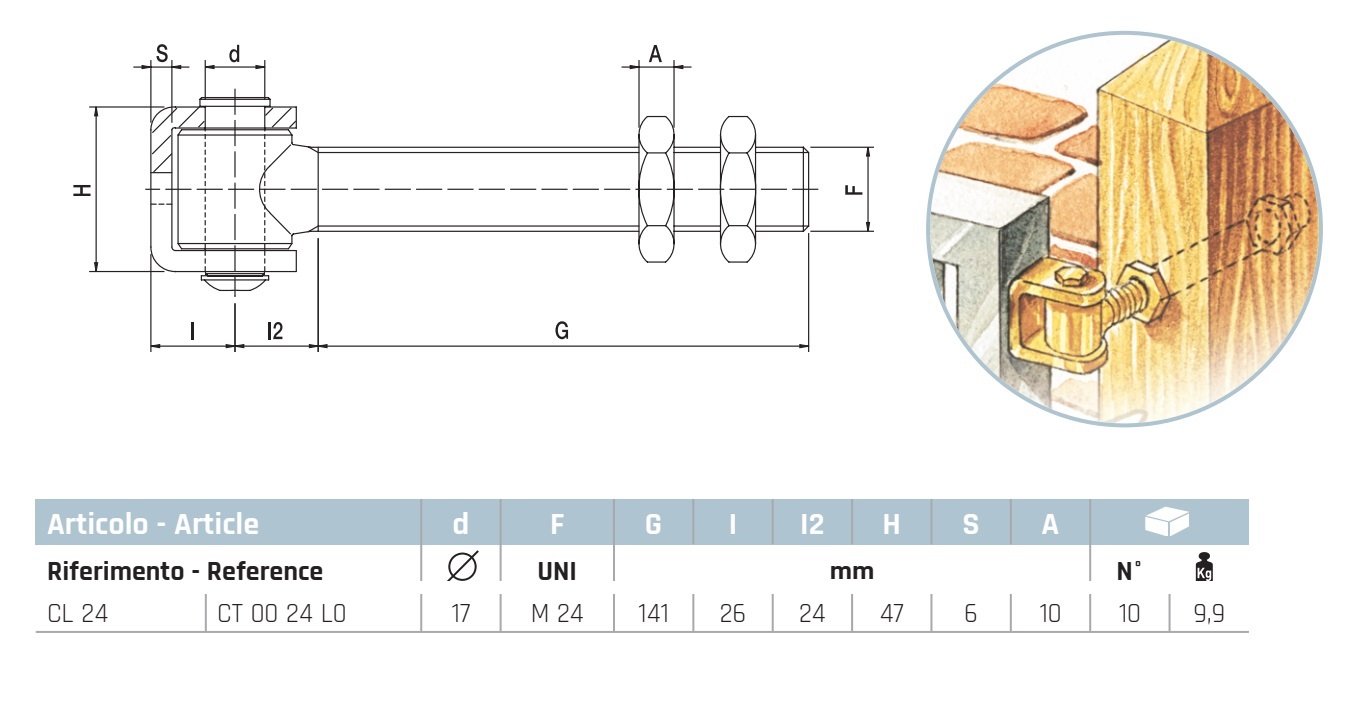

Description Built with a robust M24 UNI-standard thread and an extended 141mm threaded bar, the CL 24 hinge offers outstanding adjustability, allowing precise fine-tuning between your gate and post. Whether you’re compensating for post movement, timber swelling, or gate sagging over time, this hinge provides unmatched versatility and control. Designed for smooth operation, the hinge supports a 90° opening and is built with a sturdy 17mm axis diameter for reliable daily use. The reinforced hinge body, featuring a 26mm internal width, 24mm mounting base, 47mm height, 6mm plate thickness, and 10mm weld-on plate width, ensures stability and strength across a wide range of installations. Suitable for wooden posts when paired with the optional PR 24 mounting plates, these hinges are crafted to meet the demands of long-term outdoor exposure. Load rating up to 90-kgs per hinge. Finished in a yellow galvanised coating, they deliver superior protection against rust and corrosion. Tested under rigorous conditions, the CL 24 hinge boasts an impressive lifespan of up to 0.5 million revolutions in normal environmental conditions. For optimal longevity, we recommend checking hinge strength and clearances approximately every six months. Key Features Italian-made adjustable weld-on hinge Heavy-duty M24 thread with 141mm long bar 17mm axis diameter for smooth movement Supports 90° gate opening Yellow galvanised finish for corrosion resistance Compatible with PR 24 and PR 24 F mounting plates for timber posts Designed for both steel and wooden gate posts Tested to 0.5 million revolutions Ideal for medium-weight swing gates
