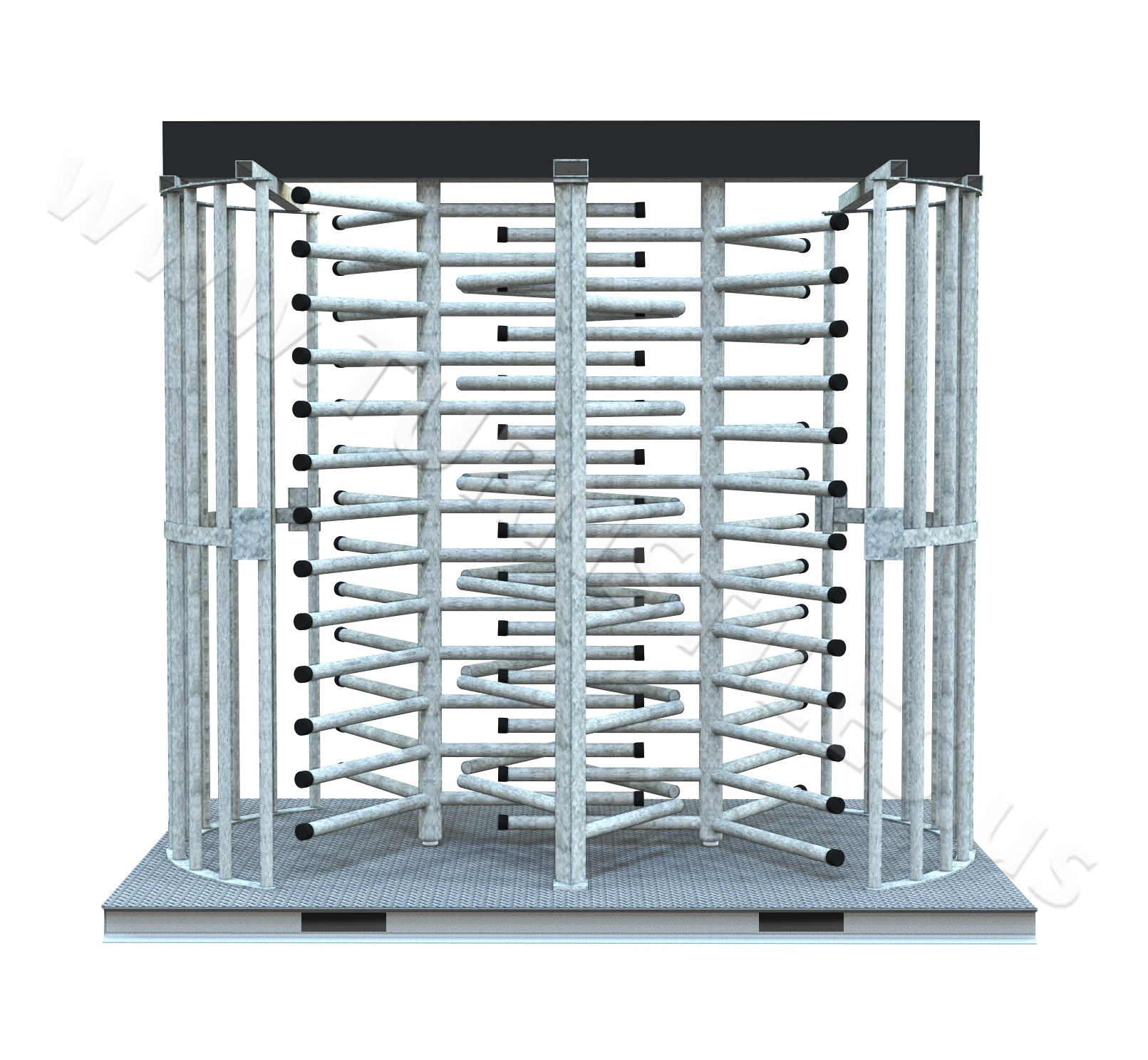

HS430-T-BASE Portable Tandem Turnstile

Description Tandem Turnstile secured to forklift base for portability. This unit has all of the essential components included and is great for construction sites that need to track employees and want to move their secure access points when done working. Many custom options are available, including solar power, counters, card readers, and an electronically controlled access system. Manufactured in the USA. Data Sheet – HS430-T-BASE  Portable Tandem Turnstile AutoCAD Detail – HS430-T-BASE  Portable Tandem Turnstile Data Sheet – Tandem Turnstiles Installation Manual – Tandem Turnstiles Data Sheet – Portable Base Plates FEATURES of the HS430T-BASE Full Height Tandem Turnstile 30″ Dual Passage HD Heavy Duty Tubing Electric Two-Way Controls Galvanized Finish Black End Caps Card Reader Mounting Plates Portable Base Plate Portable by forklift or crane lift points Durable materials and finishes Pre-assembled Made in the U.S.A.   SPECS & DIMENSIONS Base Plate Footprint Size for Tandem Turnstile 108″ x 71.2″ Overall Size 7’7″ Tall x 9 Wide x 6′ Deep Weight approximately ~1400 lbs     TURNSTILE ADDITIONAL OPTIONS Battery Back-Up – 12ah battery kit with 2x 12VDC batteries & 2 amp 24VDC charger Bidirectional Key Override Set for Manual or Electric 2-Way Units – Allows the turnstile to be locked independently in each direction with a turn of a key. Card Reader Mounting Plate/Enclosure (1 per electronic direction) – For mounting most standard card readers Cold Weather Package – Includes 250 Watt Thermostat-Controlled Heater and Insulated Mainframe. Counter – 8-Digit Resettable counter for tracking access events Daylight Visible Indicator Lights – A tri-color (R/G/Y) indicator light. Most models only use R/G. End Caps Black or Safety Orange – Rubber caps cover the end of the arm for safety and seal. Important for GV or PC units: the end of the arm is an open tube and without a cover, dust or insects could potentially get inside. Stainless steel turnstile arms are closed on the ends. (black standard) Filler Barrier Partitions – Used to enclose a secured area, or as a spacer between units. The standard barrier height is 91”. Standard barrier width is up to 36”. Finish Upgrade: Powder Coating Over Galvanizing (Seals steel for corrosive environments, highly recommended for outdoor installations) Choice of Color Heel Guard/Safety Sleeve Arm Covers – Protective arm sleeve that cushions feet and ankles in event of users kicking the lower bars. Can also be used on upper bars for face and hand protection. Commonly seen is 15 sleeves, 12 upper 3 lower. Standard color is black, custom available. Home Position Switch – Additional limit switch provides a SPDT output while at home for security integration Lockout Bar (out of service lock) – Prevents rotor from turning (padlock not included) One Channel 900 MHz Wireless Receiver (one per direction) One or Two Button Wireless Key Fob Transmitter Proximity Sensor Upgrade – Replaces limit switches with proximity sensors for part longevity Single or Double Push Button (installed on-site) Solar power, wireless connectivity Full Canopy Roof (Stainless with Box Tubing Frame) – Square covers top of the entire unit Yoke Guard (Powder Coated) – Semi-circle that attaches to the unit. Covers passageway only. Yoke Guard (Stainless) – Semi-circle that attaches to the unit. Covers passageway only. Upgrade to extra-secure Welded Base (in addition to bolted-down) Upgrade Finish of Turnstile: Galvanized Steel (included Standard Finish) 304 Stainless Steel – heaviest duty, recommended for outdoor installs. Price on Request. Powder Coated over Galvanized – recommended for outdoor installs. Standard color is Black. Choice of Color or Custom RAL#.   APPLICATION Great for Construction Sites! Temporary secured entrances Industrial facilities Remote job sites Event access control Portable perimeter security Infrastructure and utility projects Locate where you may or may not have a guard present Use them for entrance and/or exit, bidirectional Stand-alone units or as part of an integrated system Tandems maximize use of space and user through-put Can be interfaced with optional devices and access control systems – see EntraPASS The base plate can be placed on concrete or on the ground with/without ramps   Need more weather protection? See ENTRABOX Turnstile Containers Contact TURNSTILES.us for delivery and freight information. Shipping is additional to the equipment price. Ships Assembled! See our Turnstile Installation Portfolio
